36W low votagle transform

Key Features & Advantages

• 36 W Rated Output Power
  Stable low-frequency transformer design, suitable for 36 W class power supplies in consumer and industrial electronics.
• Universal AC Input
  Supports 110 V / 230 V, 50/60 Hz mains input for global markets, reducing the need for multiple transformer versions.
• Low Noise, Low Leakage
  Optimized EI core structure and winding design help reduce vibration, magnetic leakage and audible noise, ideal for audio equipment and household appliances.
• Safety & Compliance Ready
  Designed to comply with UL62368, EN62368, FCC Part 15, EN55032 and GB4943.1, helping customers pass product certification faster and reduce project risk.
• Comprehensive Protection
  Built-in temperature and over-current protection (according to matching power supply design) to improve system reliability and extend service life.
• Robust Mechanical Design
  Compact size with stable mounting structure to withstand daily vibration and handling in production and installation.
• OEM / ODM Customization
  Turns ratio, output voltage/current, lead type, terminals and overall dimensions can be customized according to customer circuit design and mechanical layout.

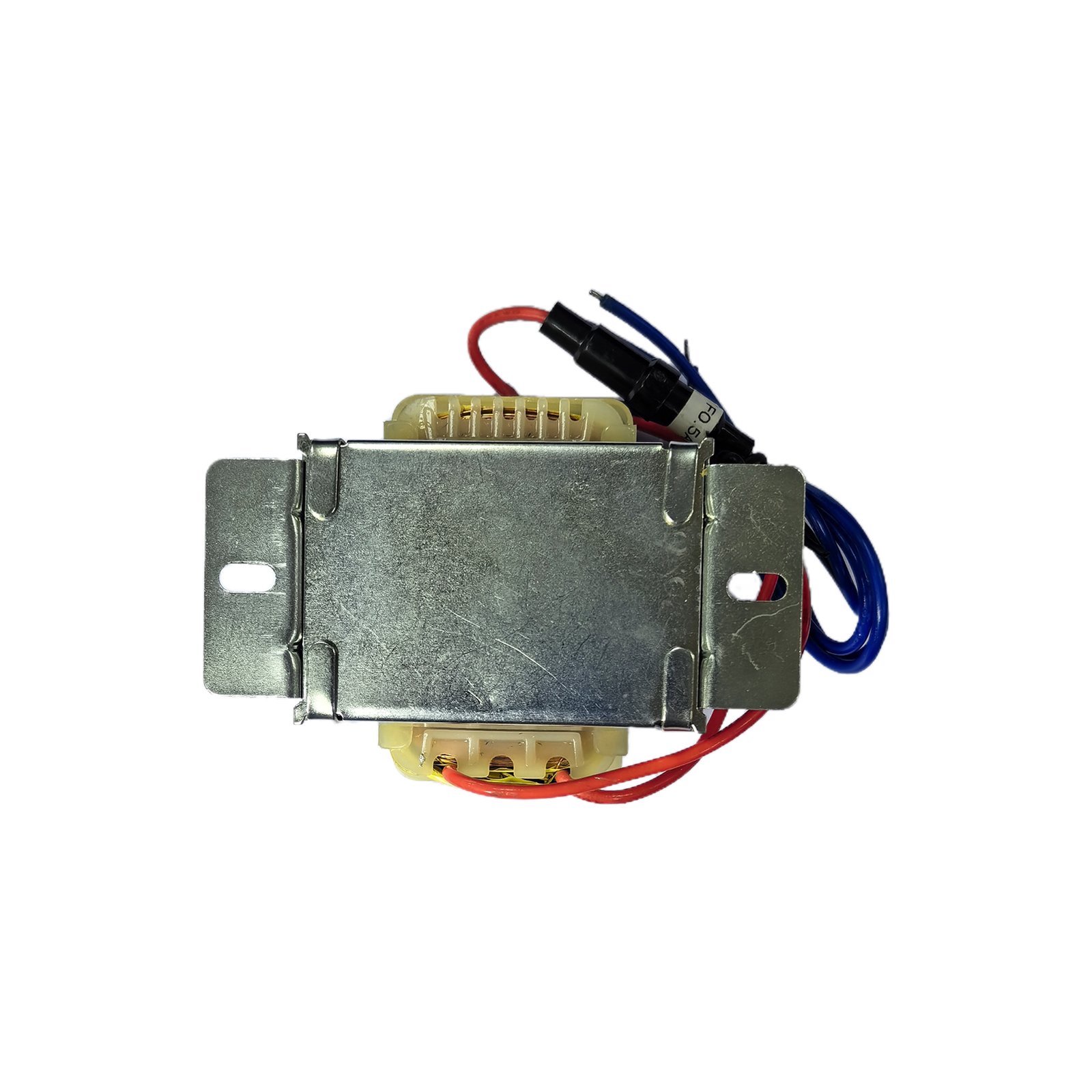

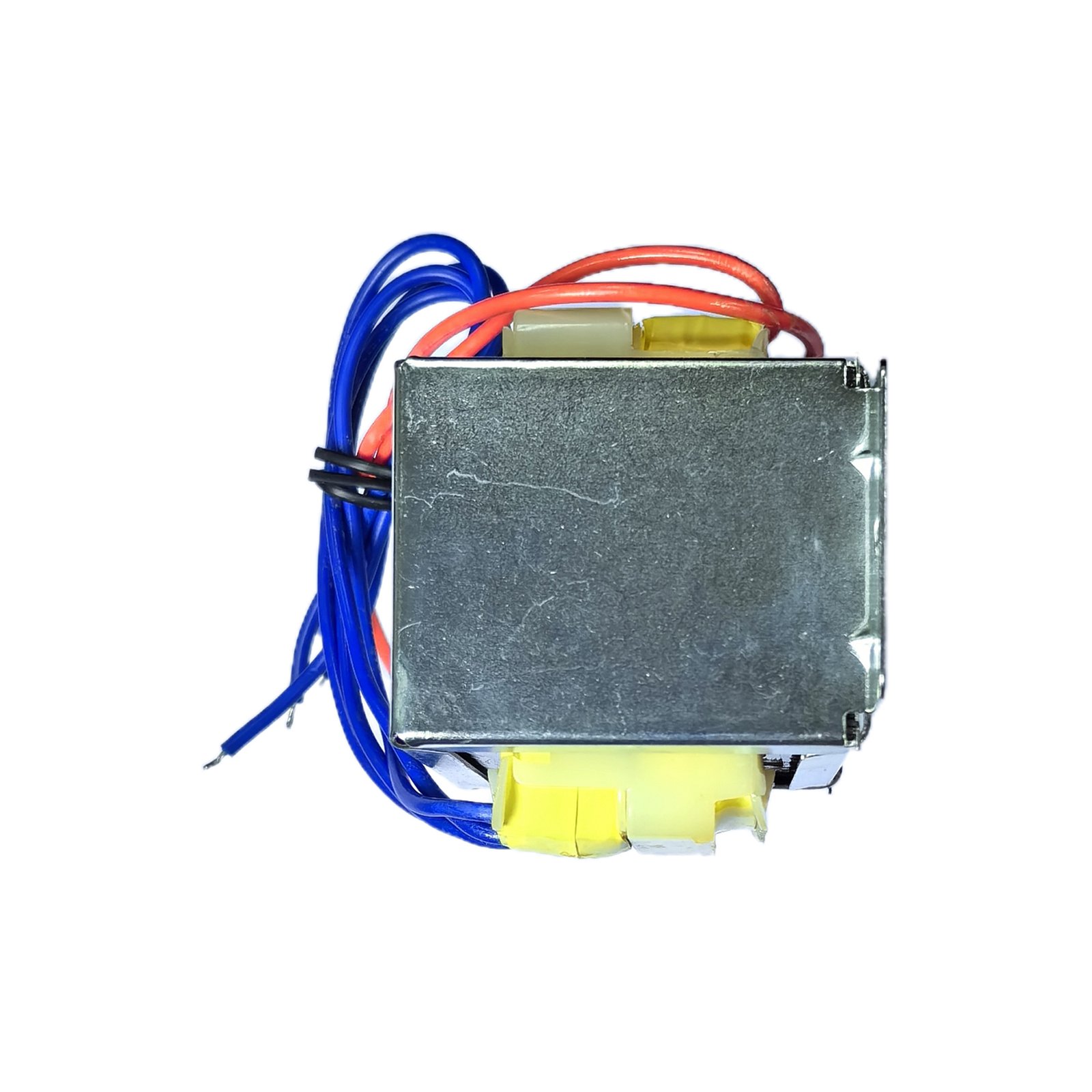

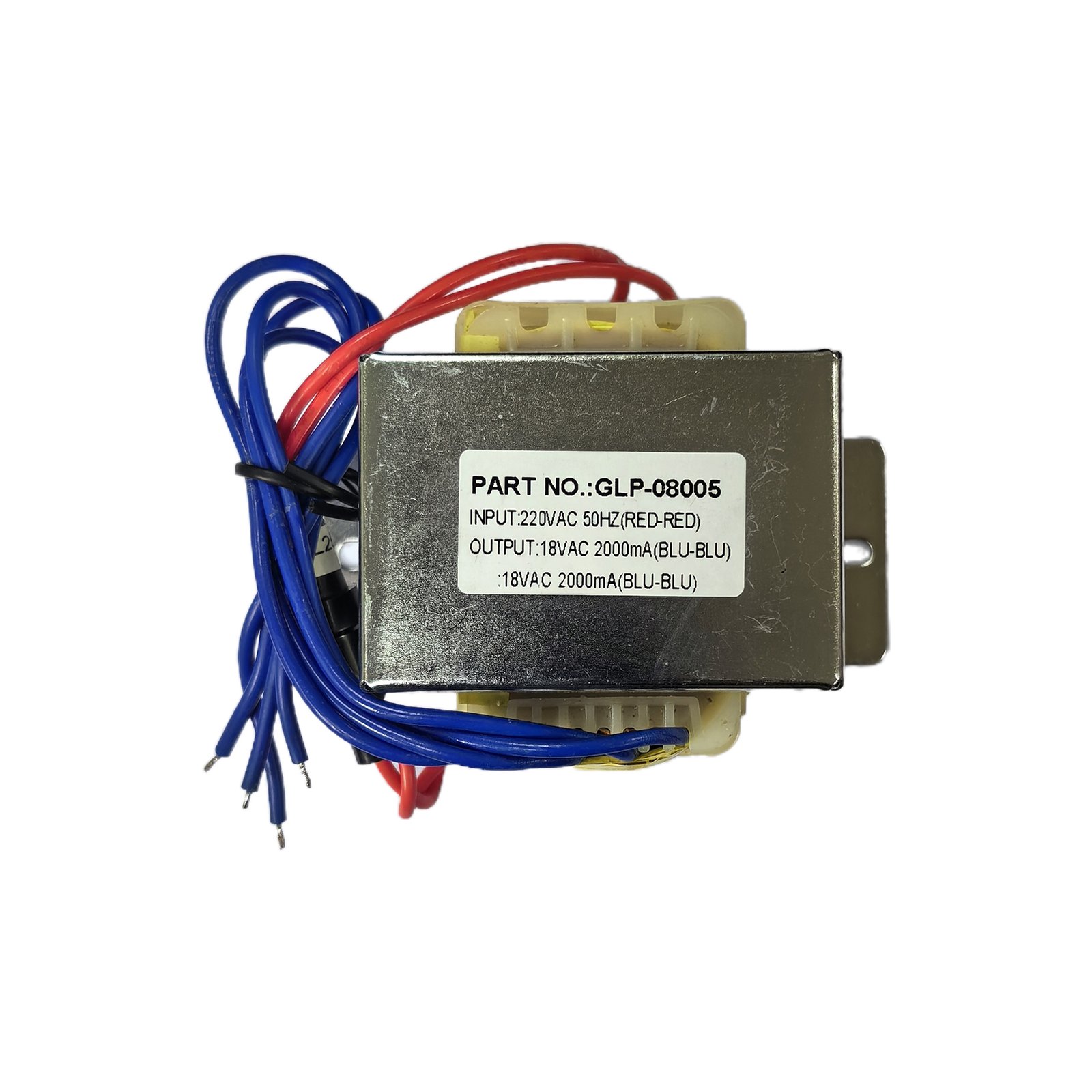

Technical Specifications (Model GLP-08005)

• Model: GLP-08005
• Rated Input Voltage: 110 V / 230 VAC
• Input Frequency: 50 / 60 Hz
• Connection Type: Lead-terminal connection (other connection methods can be customized)
• Operating Ambient Temperature: 0 ℃ to +40 ℃
• Typical Output Voltage: 12 V (other voltages can be customized on request)
• Rated Output Power: 36 W
• Protection Functions: Temperature protection, over-current protection (to be matched with power supply design)
• Dimensions (L × W × H): 70 × 62 × 58 mm
• Product Weight: Approx. 1291 g
• Safety & EMC Standards:
  • UL62368
  • EN62368
  • FCC Part 15
  • EN55032
  • GB4943.1

Note: Electrical parameters such as output voltage, current, turns ratio and insulation class can be adjusted according to the specific requirements of your power supply design.

Call to Action

If you are designing or upgrading power supplies for audio equipment, home appliances, security systems or industrial controls, welcome to contact the Macable Group Company team. We can match the transformer specifications to your real application conditions and help you reduce development time and total cost.
