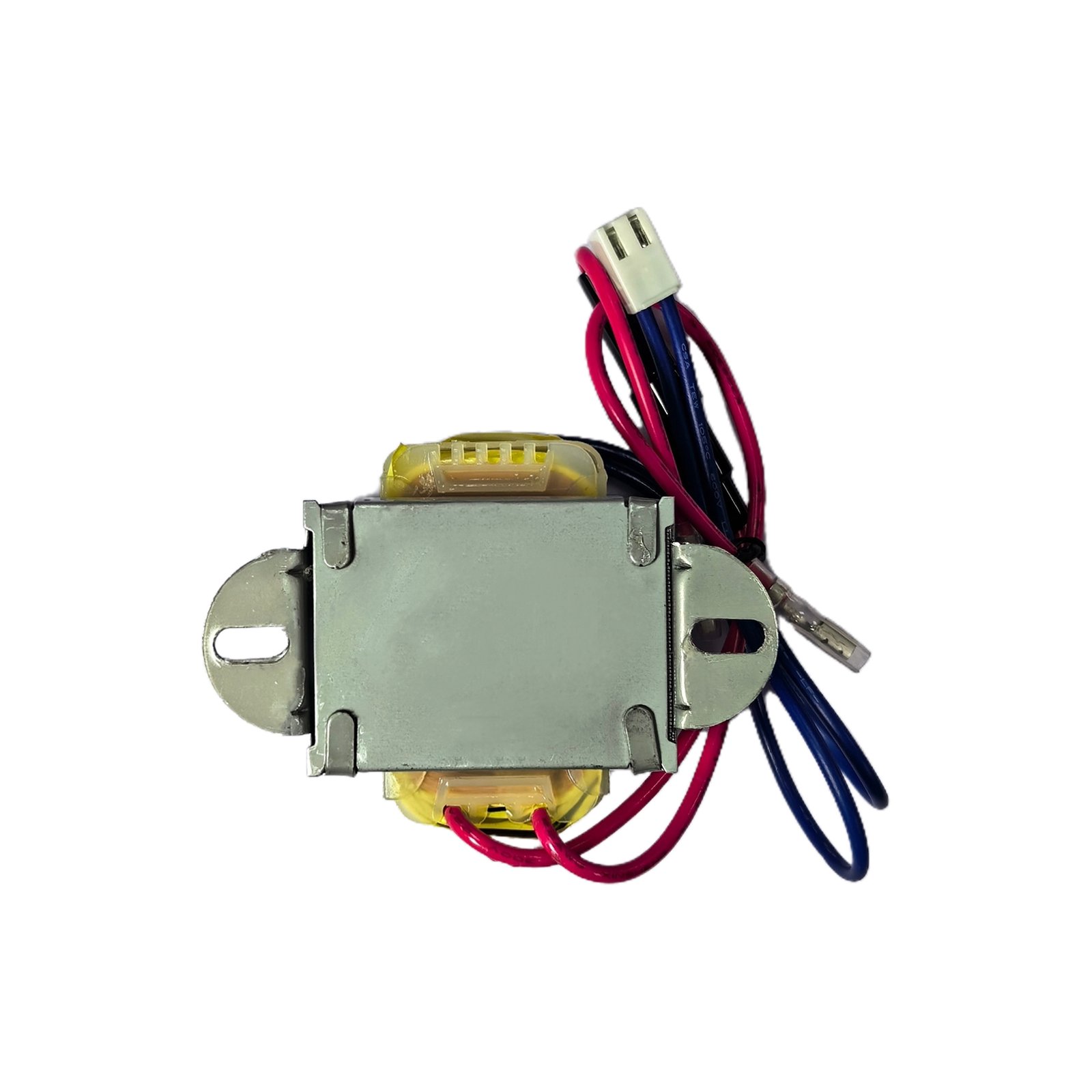

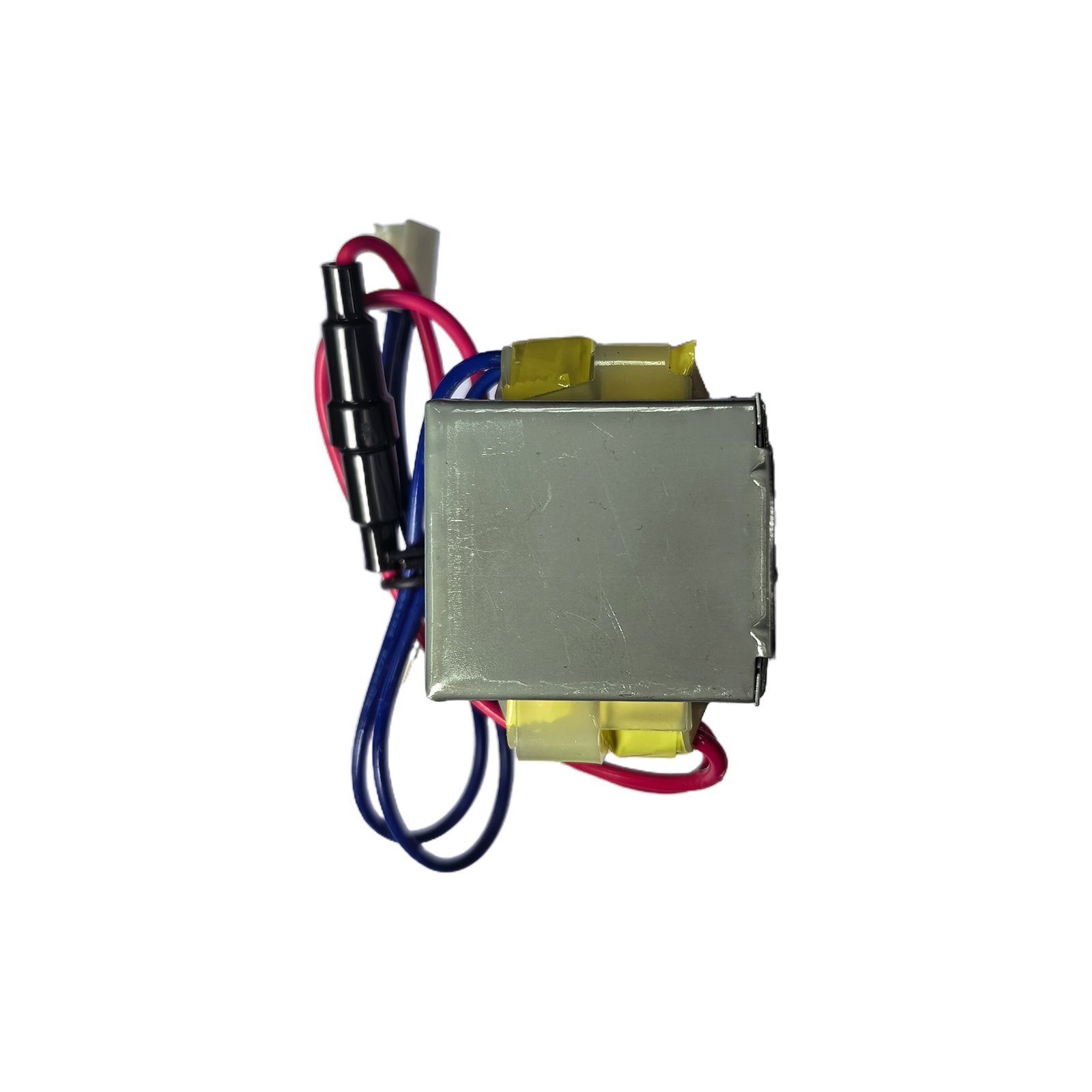

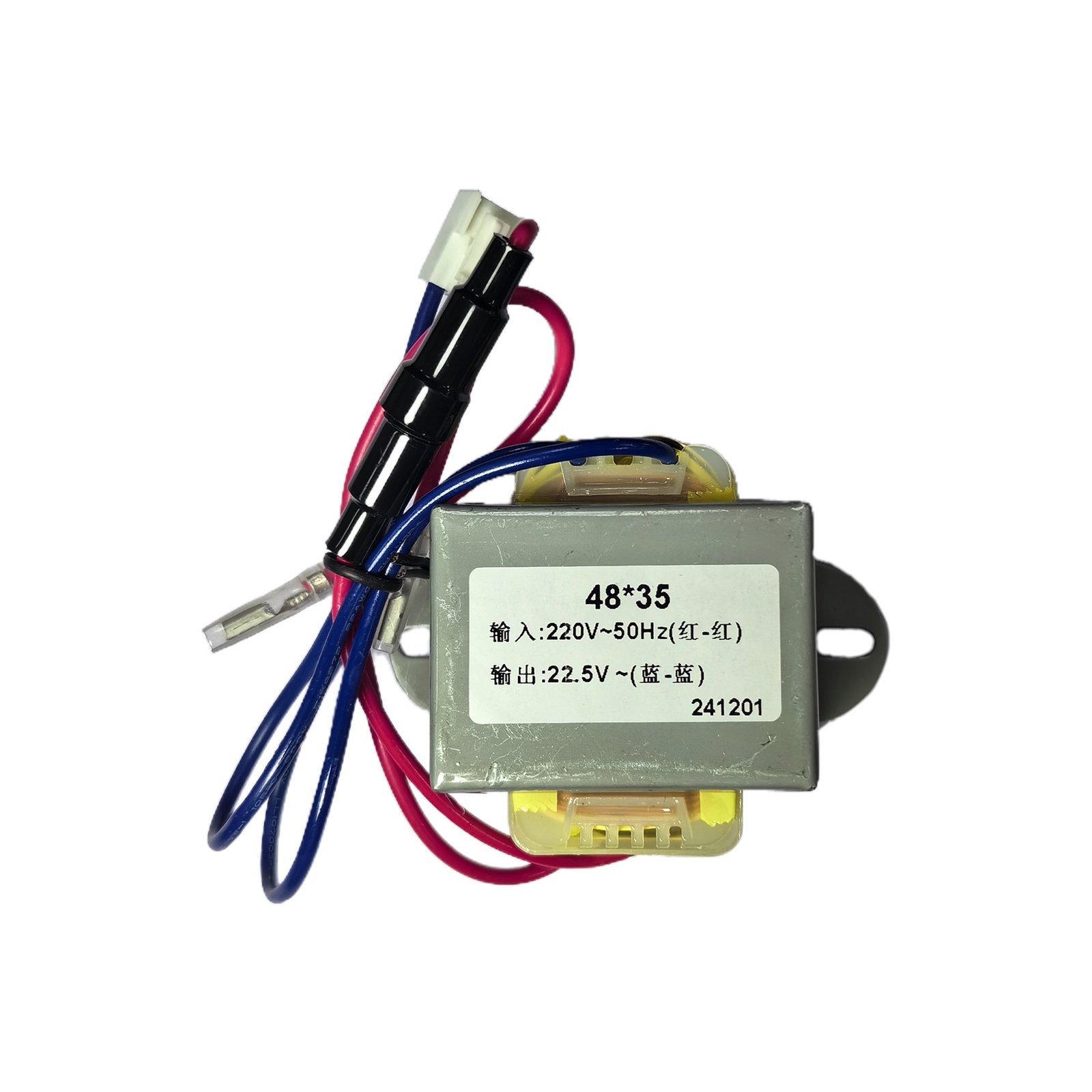

Transformer EI48X35 22.5V

This is an EI-type transformer (model EI48X35) designed to provide an output voltage of 22.5V. Below is a brief overview:

1. Type & Structure:
   • EI Core: Features an E-shaped and I-shaped laminated iron core, common in cost-effective, traditional transformers.
   • Compact Design: Suitable for low-to-medium power applications.
2. Electrical Specifications:
   • Output Voltage: 22.5V AC (secondary side; input voltage typically 110V/220V AC, 50/60Hz, depending on regional standards).
   • Power Rating: Not specified, but EI48X35 models typically range from 10W to 100W (exact value depends on manufacturer).
3. Applications:
   • Used in power supplies, industrial equipment, or consumer electronics requiring isolated/step-down AC voltage.
   • Ideal for low-noise applications where efficiency is less critical than cost.
4. Notes:
   • Requires proper insulation and mounting for safety.
   • Frequency response and load regulation depend on winding quality and core material.

For precise details (e.g., current rating, efficiency), consult the manufacturer’s datasheet.

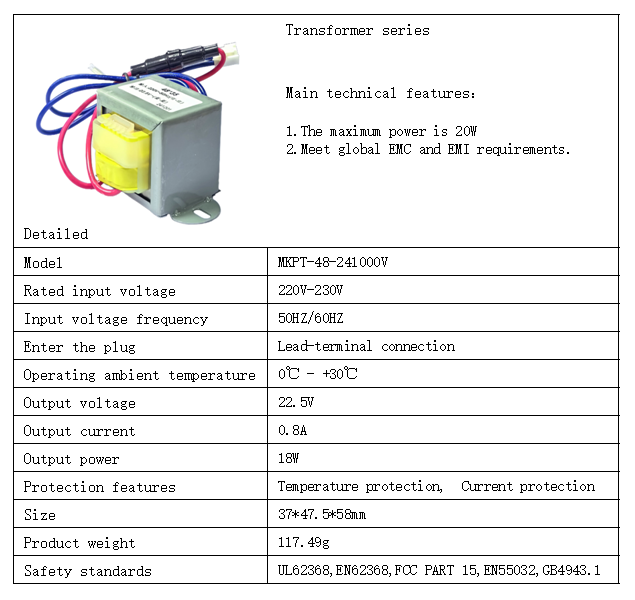

Transformer EI48X35 22.5V Specifications：
