Security Power Supply MKAC-57-242500M Overview

MKAC-57-242500M is a 24 V, 2.5 A security power supply specially designed for CCTV surveillance, access control, alarm systems and other low-voltage security devices that need stable, continuous DC power. With up to 60 W output power and a wide -40 ℃ to +70 ℃ operating temperature range, it is suitable for both indoor and outdoor security projects.

Key Features & Benefits

• 24 V / 2.5 A, 60 W output
  Provides sufficient power for multiple cameras, controllers or detectors on one 24 V bus, helping integrators reduce the number of power modules and simplify wiring.
• Wide temperature range for harsh environments
  Designed to operate from -40 ℃ to +70 ℃, suitable for outdoor security boxes, industrial sites, parking lots and other applications exposed to low or high temperatures.
• High efficiency, energy-saving design
  Compliant with EU Level VI energy efficiency, which helps reduce standby losses, lower heat generation in enclosed cabinets and extend component lifetime.
• Stable 220 V / 50 Hz AC input
  Rated input 220 V, 50 Hz with AC cable input, easy to connect on-site and compatible with common mains environments in Asia, the Middle East, Africa and many emerging markets.
• Complete protection functions
  Built-in over-current protection (OCP), over-voltage protection (OVP) and short-circuit protection (SCP) protect both the power supply and end devices, reducing failure risk and after-sales cost.
• Rugged housing for engineering installation
  Compact 99.5 × 82 × 66.5 mm housing and 1121 g weight make it suitable for mounting inside metal security boxes, wall cabinets or control panels.
• Meets global EMC/EMI and safety standards
  Compliant with UL62368, EN62368, FCC PART 15, EN55032 and GB4943.1, helping your complete system pass certification and speed up market access.

Typical Applications

• CCTV camera and DVR/NVR power supply
• Access control systems and door controllers
• Intrusion alarm panels, sirens and sensors
• Security communication and monitoring equipment
• Industrial monitoring and building automation

OEM / ODM Customization Options

Macable can support OEM and ODM projects, including customization of AC input cable length, DC output wiring, connectors, labels, logo printing and packaging. If you have specific certification requirements or special working conditions (outdoor cabinet, high humidity, high temperature), our engineers can evaluate your load and propose the right power solution.

How to Get a Fast & Accurate Quotation

To help us offer a suitable solution quickly, please share the following information in your inquiry:

• Target country/region and application (CCTV, access control, alarm, etc.)
• Required output voltage/current or total power of the system
• Working environment (indoor/outdoor, temperature range, ventilation conditions)
• Expected annual quantity and project schedule
• Any special safety, EMC or certification requirements

The Macable team will respond with a detailed quotation, sample arrangement and technical support for your security projects.

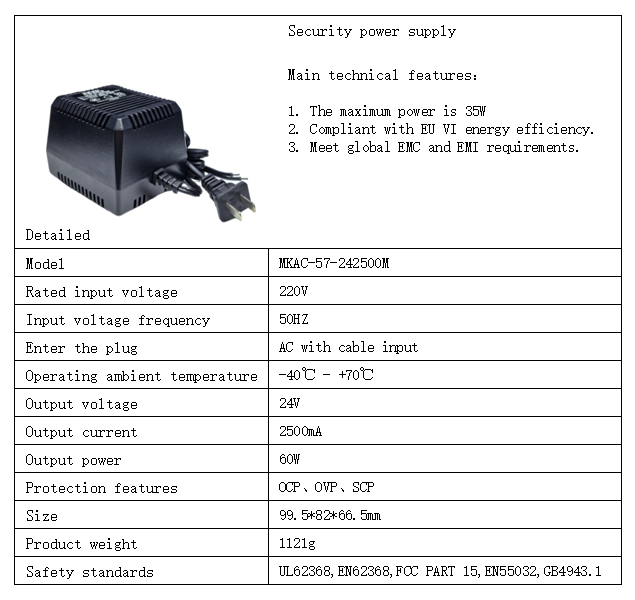

Detailed Specifications
