24V AC DC USB C Power Adapter | OEM/ODM

Security Power Supply MKAC-57-242200M Overview

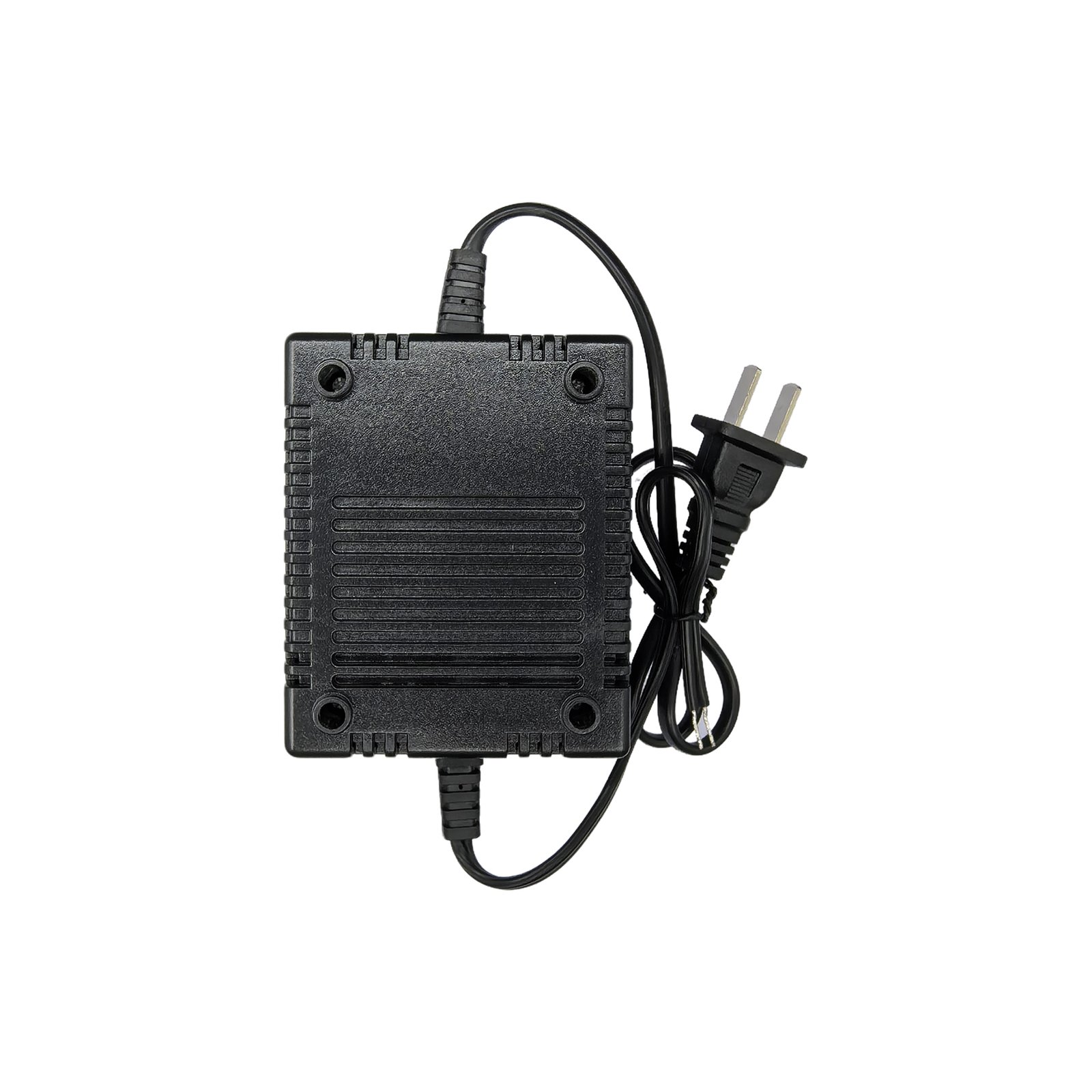

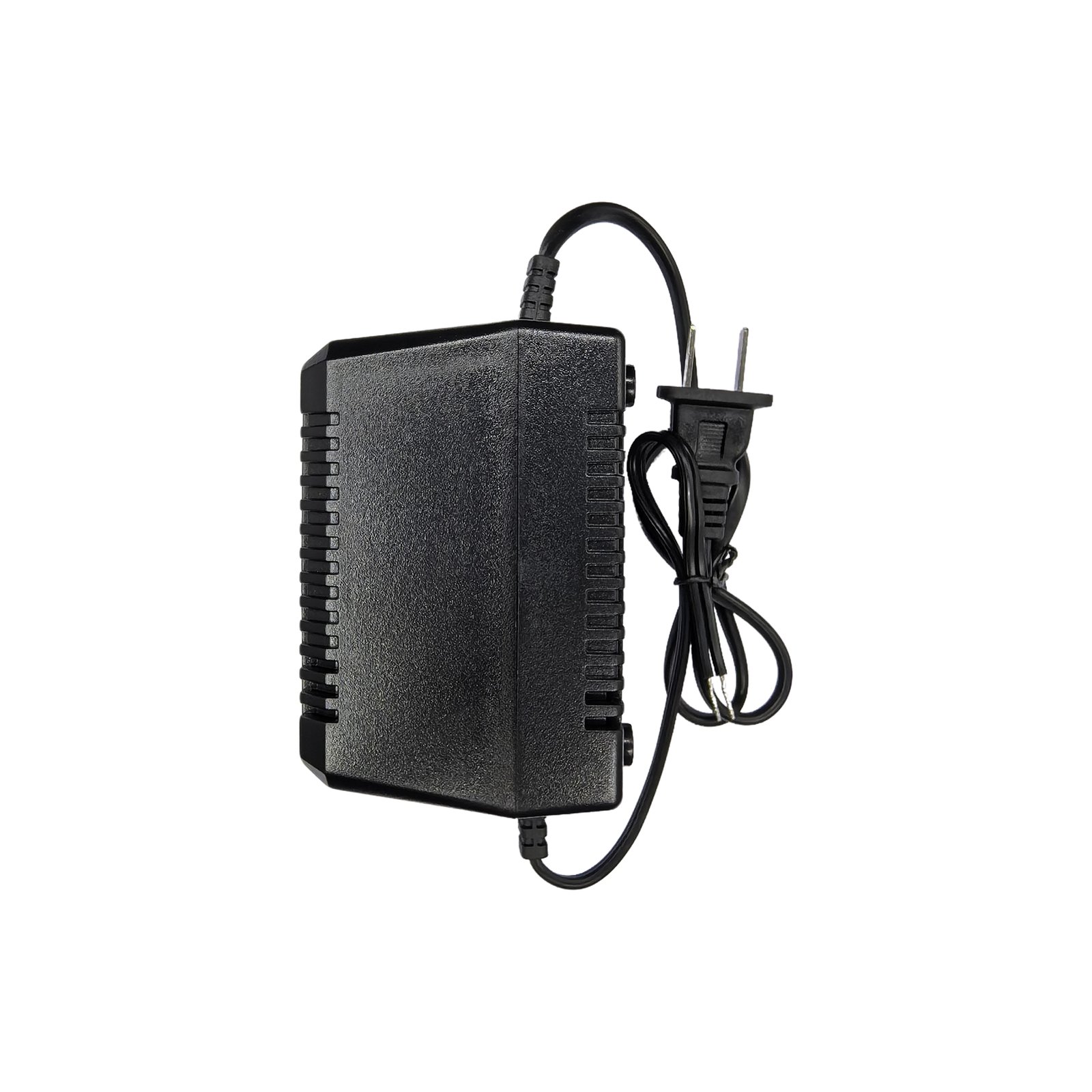

MKAC-57-242200M is a 24 V, 2.2 A security power supply designed for CCTV camera systems, access control panels, alarm controllers and other low-voltage security devices. With up to 57.6 W output power and stable DC performance, it is suitable for 24/7 operation in residential, commercial and industrial security projects.

Key Features & Benefits

• 24 V / 2.2 A, 57.6 W output
  Provides enough power reserve for multiple cameras, readers or detectors on a single 24 V bus, helping integrators simplify wiring and reduce the number of power modules.
• Dedicated for security applications
  Optimized for CCTV cameras, access control, alarm panels and communication modules that require continuous, stable 24 V DC output under long-term operation.
• High efficiency, energy-saving design
  Compliant with EU Level VI energy efficiency requirements, helping reduce standby loss, lower heat generation and extend component lifetime in enclosed cabinets.
• Stable performance at 220 V / 50 Hz
  Rated input 220 V, 50 Hz AC with AC cable input, easy to connect on-site and suitable for most mains environments in Asia, the Middle East and many emerging markets.
• Complete protection functions
  Built-in over-current protection (OCP), over-voltage protection (OVP) and short-circuit protection (SCP) help protect both the power supply and end equipment, reducing fault risk and after-sales cost.
• Rugged construction for engineering projects
  Compact 99.5 × 82 × 67 mm housing and -30 ℃ to +35 ℃ operating temperature range make it suitable for installation in security boxes, wall cabinets and control panels.
• Meets global EMC/EMI and safety standards
  Compliant with UL62368, EN62368, FCC PART 15, EN55032 and GB4943.1, which helps your complete system pass certification and speed up market access.

Typical Applications

• CCTV camera and DVR/NVR power supply
• Access control systems and door controllers
• Intrusion alarm panels, sirens and detectors
• Security communication and network devices
• Industrial monitoring and building automation

OEM / ODM Customization

Macable can customize AC input cable length, DC output wiring, connectors, labels, logo printing and packaging according to your project requirements. If you have specific certification needs or special working environments, our engineers can help evaluate the load and give professional suggestions on power configuration.

How to Get a Fast Quotation

When sending an inquiry, please share your target country or region, application (CCTV / access control / alarm), required 24 V output power, expected annual quantity and any special safety or EMC requirements. The Macable team will prepare a detailed quotation and sample plan to support your security projects.

Detailed Specifications
