Description
-
Power Adapter Series
Main Technical Features:
- Flyback QR circuit topology.
- Compliant with EU VI energy efficiency.
- Meets global EMC and EMI requirements.

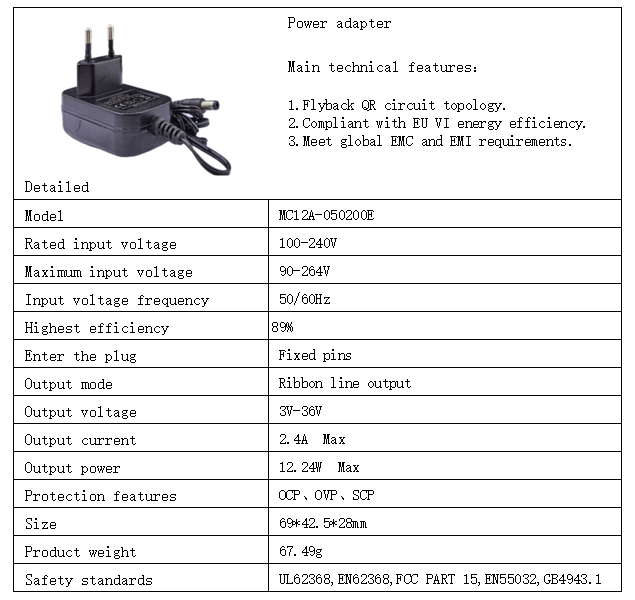

Detailed Specifications
Parameter Value Model MC12A-050200E Rated input voltage 100-240V Maximum input voltage 90-264V Input frequency 50/60Hz Maximum efficiency 89% Input plug type Fixed pins Output mode Ribbon line output Output voltage 3V-36V Maximum output current 2.4A Maximum output power 12.24W Protection features OCP/OVP/SCP Dimensions 69×42.5×28mm Product weight 67.49g Safety standards UL62368, EN62368, FCC PART 15, EN55032, GB4943.1
Special Request
You can customize the products according to your requests. Both ODM and OEM ways are available.
Why Macable Group Company's Power adapter
-
Support customization
-
Sample processing
-
Years of experience
-
Rapid mold production
-
Rest assured service
