Description
-
POE Power Adapter Series
Main Technical Features:
- Flyback QR circuit topology.
- Compliant with EU VI energy efficiency.
- Meets global EMC and EMI requirements.

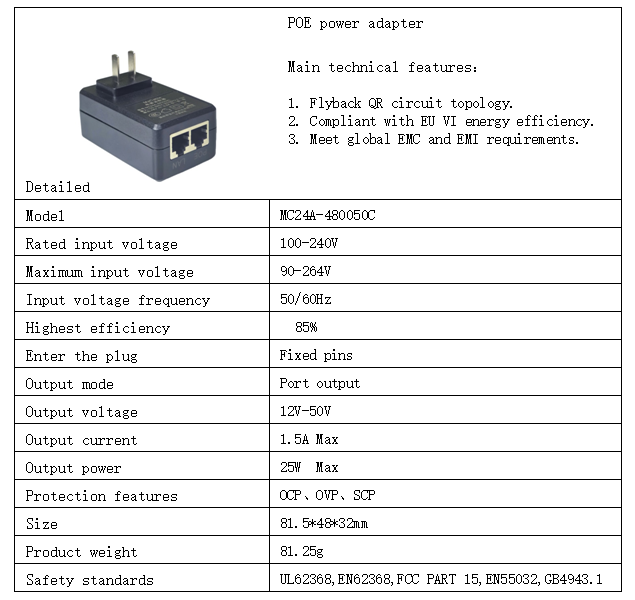

Detailed Specifications
Parameter Value Model MC24A-480050C Rated input voltage 100-240V Maximum input voltage 90-264V Input frequency 50/60Hz Maximum efficiency 85% Input plug type Fixed pins Output method Port output Output voltage range 12V-50V Maximum output current 1.5A Maximum output power 25W Protection features OCP/OVP/SCP Dimensions 81.5×48×32mm Product weight 81.25g Safety standards UL62368, EN62368, FCC PART 15, EN55032, GB4943.1
Special Request
You can customize the products according to your requests. Both ODM and OEM ways are available.
Why Macable Group Company's Power adapter
-
Support customization
-
Sample processing
-
Years of experience
-
Rapid mold production
-
Rest assured service
