Description
-
PD Fast Charger Series
Main Technical Features:
- Flyback QR circuit topology.
- Compliant with EU VI energy efficiency.
- Meets global EMC and EMI requirements.

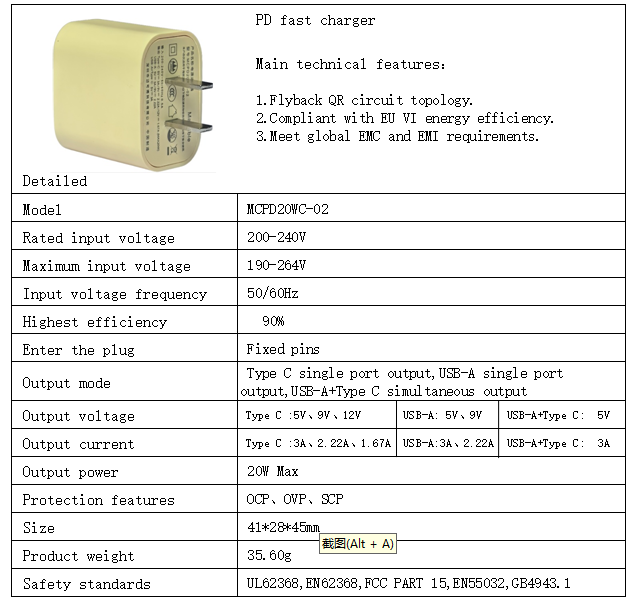

Detailed Specifications
Parameter Value Model MCPD20WC-02 Rated input voltage 200-240V Maximum input voltage 190-264V Input frequency 50/60Hz Maximum efficiency 90% Input plug type Fixed pins Output mode Type-C single port / USB-A single port / USB-A+Type-C dual port Output voltage Type-C: 5V/9V/12V
USB-A: 5V/9V
Dual Port: 5VOutput current Type-C: 3A/2.22A/1.67A
USB-A: 3A/2.22A
Dual Port: 3A (Total)Maximum output power 20W Protection features OCP/OVP/SCP Dimensions 41×28×45mm Product weight 35.60g Safety standards UL62368, EN62368, FCC PART 15, EN55032, GB4943.1
Special Request
You can customize the products according to your requests. Both ODM and OEM ways are available.
