Description
-
LED Driver Power Supply Series
Main Technical Features:
- Flyback QR circuit topology.
- Compliant with EU VI energy efficiency.
- Meets global EMC and EMI requirements.

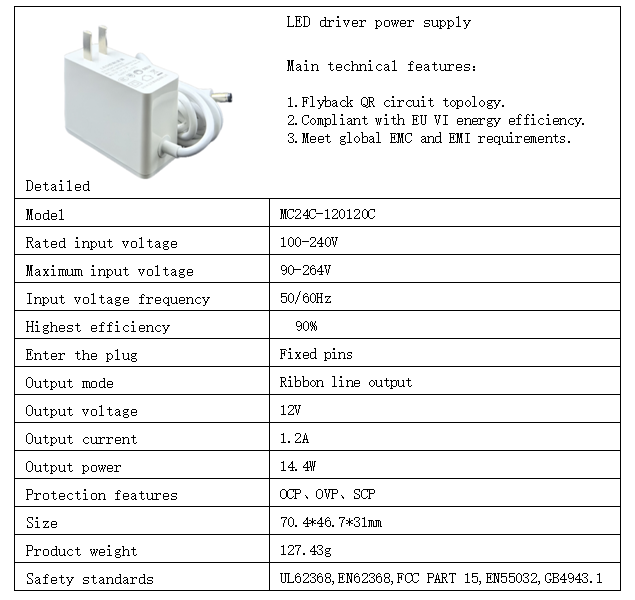

Detailed Specifications
Parameter Value Model MC24C-120120C Rated input voltage 100-240V Maximum input voltage 90-264V Input frequency 50/60Hz Maximum efficiency 90% Input plug type Fixed pins Output method Ribbon line output Output voltage 12V Output current 1.2A Output power 14.4W Protection features OCP/OVP/SCP Dimensions 70.4×46.7×31mm Product weight 127.43g Safety standards UL62368, EN62368, FCC PART 15, EN55032, GB4943.1
Special Request
You can customize the products according to your requests. Both ODM and OEM ways are available.
Why Macable Group Company's Power adapter
-
Support customization
-
Sample processing
-
Years of experience
-
Rapid mold production
-
Rest assured service
