24V AC DC Power Adapter - LED driver power

Key Features of MC24C-240090C LED Driver Power Supply

• Stable 24 V DC Output for LED Loads
  The MC24C-240090C is designed to provide a stable DC output (nominal 24 V) suitable for many low–medium power LED applications, helping reduce flicker, improve lumen stability and extend LED lifetimes in continuous operation.
• Compact Size for Easy Integration
  Its small form factor makes it easy to install inside lamp housings, junction boxes, display cabinets or machine enclosures, helping designers keep lighting fixtures slim and neat.
• Wide AC Input for Global Projects
  Supports a typical 100–240 V AC, 50/60 Hz wide-range input, so one power platform can be deployed in different countries and regions with suitable wiring standards. This simplifies inventory and engineering design for global projects.
• Comprehensive Protection Design
  Integrated over-voltage, over-current, short-circuit and over-temperature protection helps protect both the LED load and the driver itself, reducing failure risk and after-sales cost for your projects.
• High Efficiency & Low Heat Generation
  Optimized circuit design improves conversion efficiency, reducing heat inside enclosed luminaires and contributing to longer component life and more reliable operation.
• Industrial-Grade Manufacturing Support
  Produced in a factory equipped with complete infrastructure and first-class production and testing instruments, ensuring stable quality from samples to mass production.

Typical Application Scenarios

The MC24C-240090C LED driver is suitable for a wide range of indoor LED applications, for example:

• LED cabinet, shelf and display case lights in supermarkets, retail and showrooms
• Architectural accent lighting and decorative 24 V LED strips
• Control panel and machine indicator lights in equipment and industrial systems
• Small commercial and residential fixtures using 24 V LED boards or modules
• Customized OEM lighting systems for lighting brands, system integrators and project contractors

If you are a lighting manufacturer, engineering contractor or system integrator, MC24C-240090C can serve as a stable and cost-effective 24 V LED driver platform within your product range.

Technical Highlights (Overview)

• Model: MC24C-240090C
• Category: LED driver power supply (AC/DC)
• Input: Wide-range AC input (typically 100–240 V AC, 50/60 Hz) for global markets
• Output: 24 V DC class output for LED loads (current and power rating can be matched to your LED design)
• Protection: Over-voltage (OVP), over-current (OCP), short-circuit (SCP), over-temperature (OTP)
• Application: Constant and stable power supply for low–medium power LED lighting products

Exact output current and maximum power can be set according to your LED module specifications and will be confirmed in the detailed datasheet or engineering drawing.

Reliability, Safety & Compliance

For professional lighting projects, reliability and compliance are essential. Relying on MaCable’s established power supply production system, the MC24C-240090C platform can support:

• Routine aging tests and functional tests to ensure batch consistency
• Design support to meet safety and EMC standards required in target markets
• Options to plan certification routes such as CE, UL/FCC, UKCA, etc., depending on sales regions and project needs
• Stable supply capacity for both pilot runs and mass production

This helps lighting brands and project buyers reduce technical risks, speed up product launches and protect long-term operation.

OEM/ODM Customization Options

Based on the MC24C-240090C platform, we can offer flexible OEM/ODM services tailored to your product and project:

• Electrical customization
  • Output voltage/current fine-tuning within the 24 V system
  • Power level and protection parameters optimized for your LED modules and thermal design
• Mechanical & wiring design
  • Housing size, mounting holes and fixing points adjusted to fit your luminaire structure
  • Custom input and output wiring, cable length, connectors and terminals
• Branding & labeling
  • Customized labels, model names and logo printing
  • Packaging (white box, color box, bulk pack) designed according to your brand positioning
• Engineering documentation
  • Detailed datasheets, wiring diagrams and installation instructions for your R&D, procurement and installation teams

Provide your LED specifications (forward voltage, current per string, number of strings, working temperature, installation space, etc.), and our engineers can quickly evaluate and recommend a matching MC24C-240090C configuration.

How to Start Your MC24C-240090C Project

To receive a tailored solution and quotation, please share:

• Type of LED product (strip, module, cabinet light, indicator, small fixture, etc.)
• Required DC output parameters (voltage range, current, power)
• Installation environment (indoor/outdoor, ambient temperature, ventilation conditions)
• Target markets and expected safety/EMC certifications
• Estimated order quantity (sample / trial order / annual forecast)

Our sales and engineering teams will help you define a suitable MC24C-240090C specification, arrange samples for testing and support you from design through to mass production.

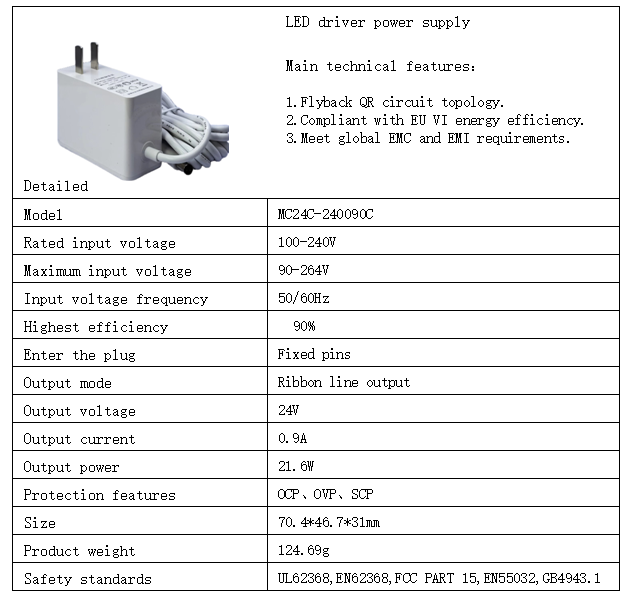

Detailed Specifications
