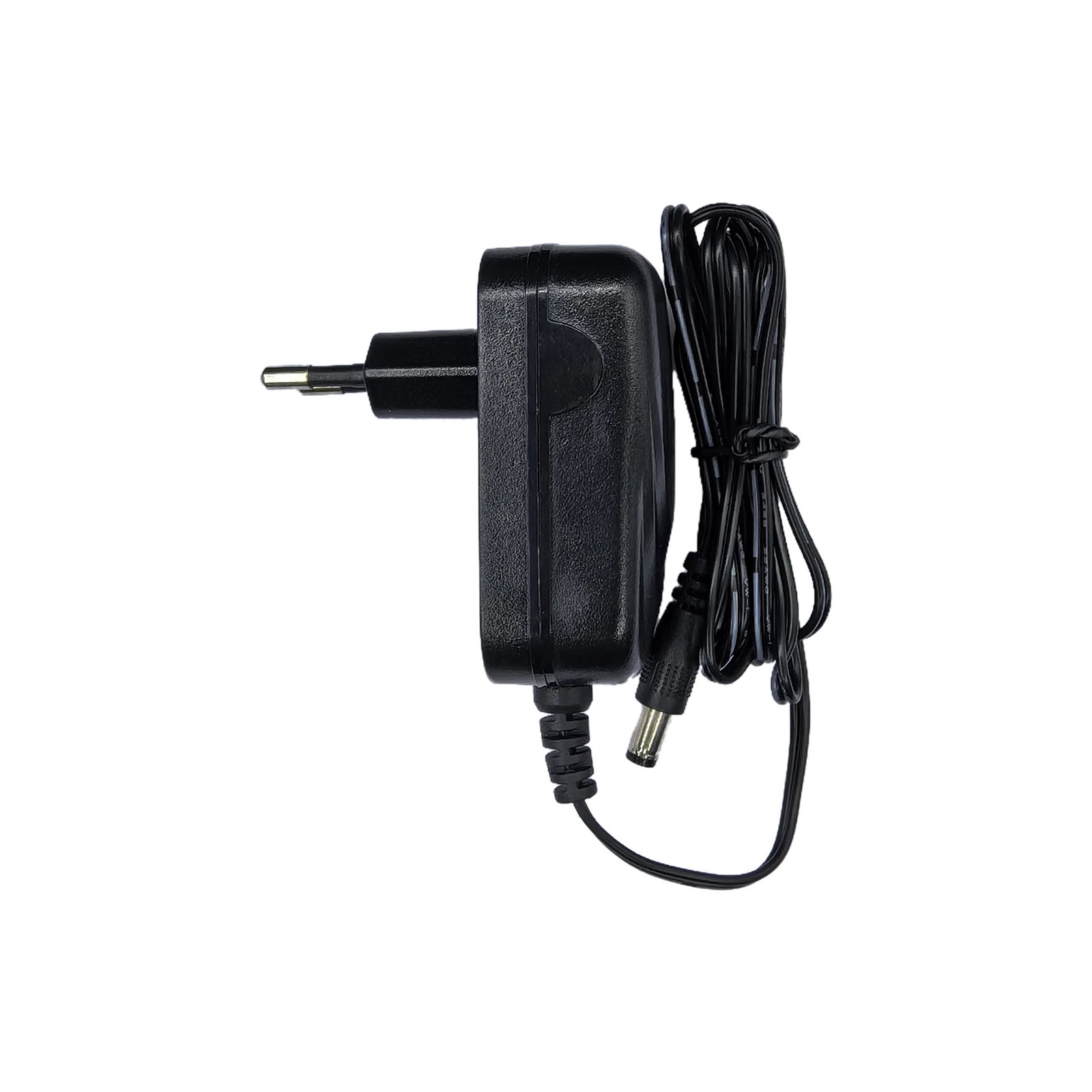

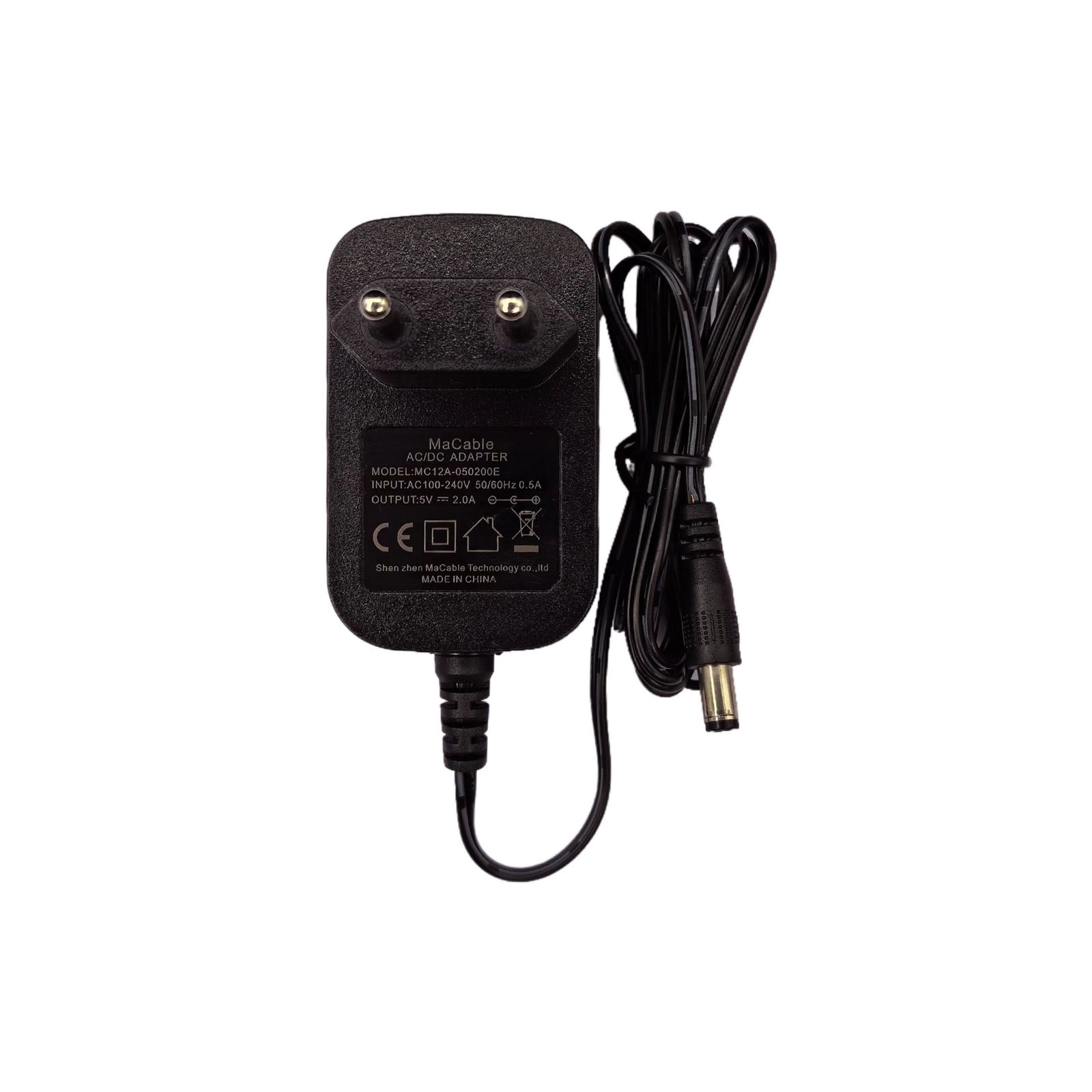

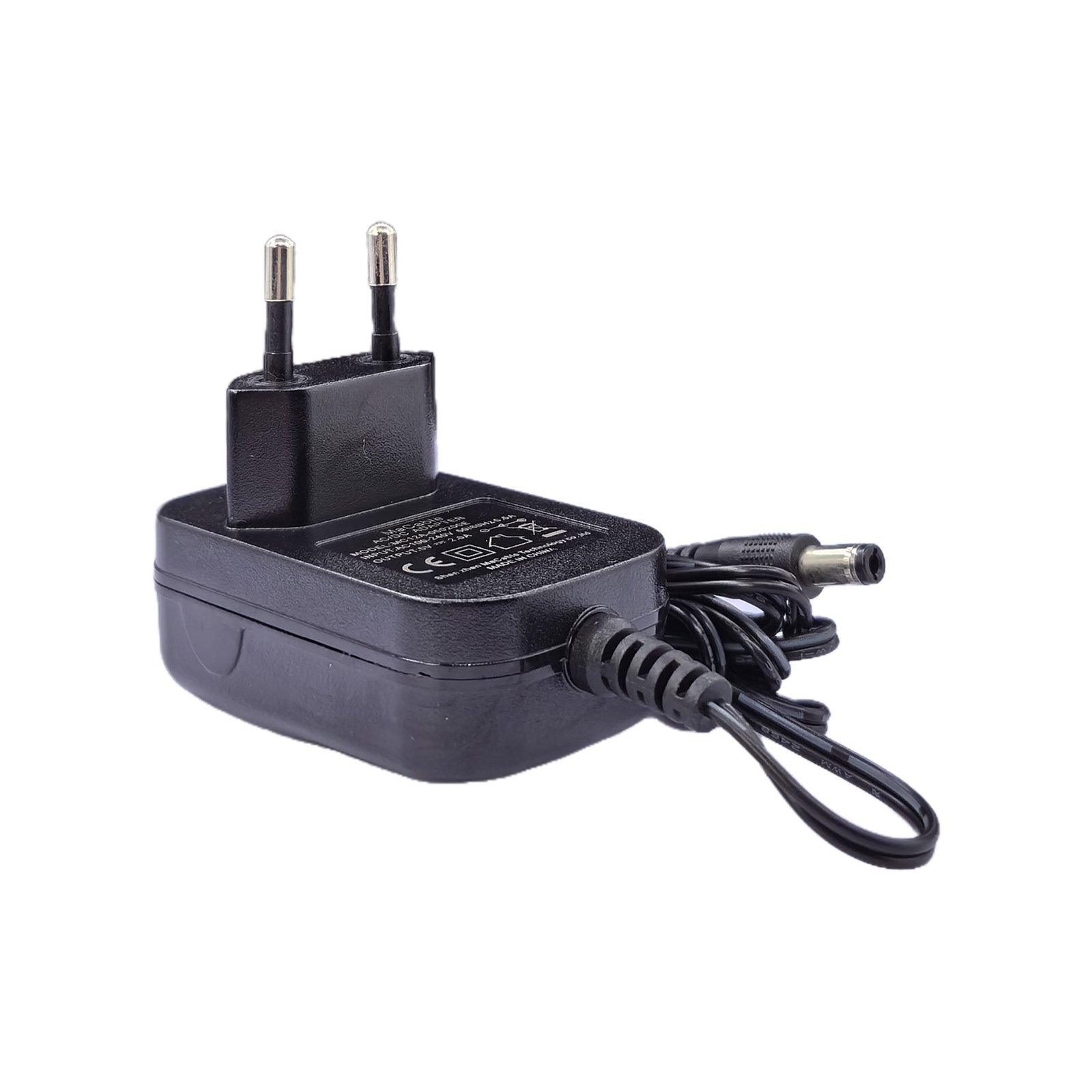

5V2A/12V1A POWER ADAPTER

Product Overview

This 5V2A / 12V1A power adapter series is designed as a universal wall-plug AC-DC power platform for small and medium-power electronic devices. With a wide input range of 100–240VAC, 50/60Hz and typical output versions such as 5V 2A and 12V 1A, it can flexibly serve different end devices including routers, set-top boxes, smart home controllers, security cameras and small industrial control equipment.

The adapter adopts a high-efficiency flyback QR circuit topology, combined with low standby power design and multiple protection functions. It helps OEM customers meet EU Level VI energy efficiency and global safety/EMC regulations, shortening certification time and reducing overall project risk.

Key Features & Benefits

• Wide input range for global use
  100–240VAC rated input (90–264VAC max) at 50/60Hz supports use in most countries and regions, making it suitable for export markets without redesigning the hardware platform.
• Flexible 5V 2A / 12V 1A output options
  Typical models in this series provide 5V 2A and 12V 1A DC outputs, covering common power requirements of low-voltage electronics and small control systems. Other output voltage and current combinations can be customized on request.
• High efficiency and low standby power
  Flyback QR topology and optimized component selection help increase conversion efficiency and reduce heat generation, ensuring stable long-term operation and compliance with EU Level VI energy efficiency requirements.
• Comprehensive protection design
  The adapter is equipped with protection features such as over-voltage protection (OVP), over-current protection (OCP) and short-circuit protection (SCP), helping protect both the power supply and the end equipment during abnormal conditions.
• Compact wall-plug form factor
  Lightweight and compact housing with fixed AC pins is easy for end users to use and suitable for retail or bundled packaging with your main device.
• Compliance with safety & EMC standards
  Designed to meet major international safety and EMC standards such as UL62368, EN62368, FCC Part 15, EN55032 and GB4943.1 (exact model certifications are subject to your chosen configuration), helping your finished products enter global markets faster.
• OEM / ODM customization for your brand
  Output voltage and current, DC cable length, connector type (barrel plug, terminal, special connector, etc.), labeling and packaging can all be customized to match your device requirements and brand identity.

Typical Applications

• Wi-Fi routers, home gateways and network equipment
• Set-top boxes, IPTV boxes and streaming media players
• Smart home controllers, IoT hubs and gateways
• CCTV cameras, NVR/DVR and small security devices
• POS terminals, small printers and barcode scanners
• Compact industrial control modules and instruments within 24W power range

Detailed Specifications – 5V2A / 12V1A Adapter Series

The following table lists the main electrical and mechanical parameters of the 5V2A / 12V1A power adapter series. Output voltage, current and connector can be adjusted according to your project requirements.
