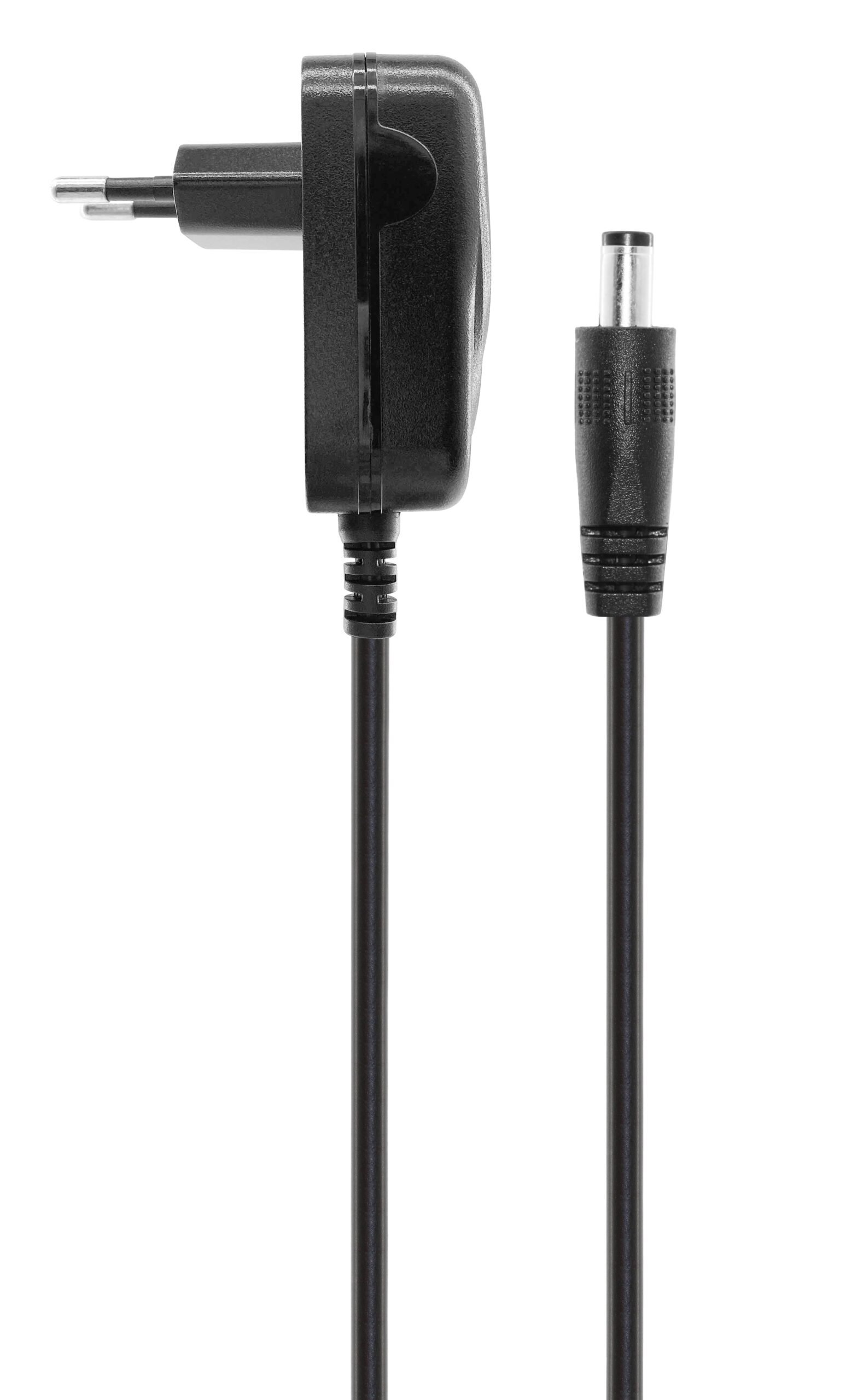

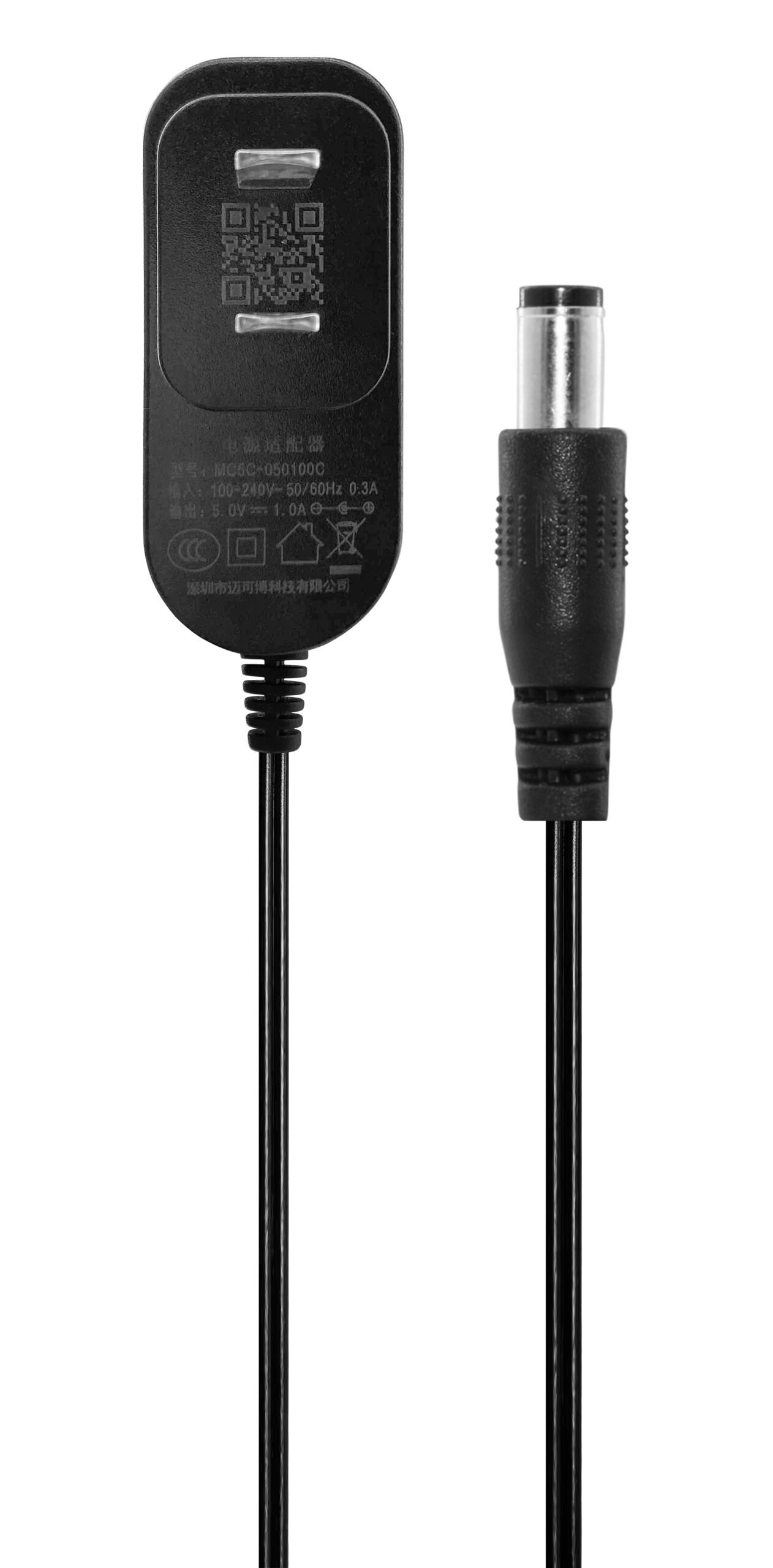

5V1A 5V 0.5Apower adapter

Product Overview

The 5V1A / 5V 0.5A power adapter is part of Macable’s compact wall-plug power supply platform, built on a flyback QR circuit topology. The MC5C-050100C model supports a wide input range of 100–240VAC (90–264VAC max) and provides flexible low-voltage DC outputs from 3V to 24V, with typical configurations such as 5V 1A or 5V 0.5A for small electronic devices.

With up to 89% efficiency, fixed AC pins and ribbon line output, this adapter is ideal for OEM customers who need a cost-effective, high-efficiency and globally certified power solution for consumer electronics, routers, set-top boxes, smart home devices and security systems.

Key Features & Benefits

• Wide input range for global markets
  100–240VAC rated input (90–264VAC max) at 50/60Hz, suitable for applications in Europe, North America, Asia and other regions without redesigning the hardware platform.
• Flexible DC output platform (3–24V)
  Supports 3–24V output voltage with up to 1.2A max output current and 7.2W max output power, allowing you to configure different voltage and current combinations such as 5V 1A, 5V 0.5A or other low-power output requirements.
• High efficiency up to 89%
  Optimized QR flyback design helps reduce power loss, lower adapter temperature and support EU Level VI energy efficiency, which is important for energy regulations and long-term reliability.
• Compact and lightweight design
  With a size of only 55 × 38.5 × 23.5 mm and a weight of about 53.5 g, the adapter fits easily into retail packaging and is convenient for end users to carry and use.
• Reliable safety and protection
  Built-in OCP (over-current protection), OVP (over-voltage protection) and SCP (short-circuit protection) help protect both the adapter and the end device from abnormal conditions.
• Compliance with global safety & EMC standards
  Designed to meet UL62368, EN62368, FCC Part 15, EN55032 and GB4943.1, supporting faster certification and market access for your finished products.
• OEM / ODM customization available
  Output voltage, current, DC cable length, connector type and labeling can be customized according to your device requirements and branding needs.

Typical Applications

• Wi-Fi routers, ONT/ONU and home gateways
• Set-top boxes, IPTV boxes and streaming devices
• Smart home controllers, hubs and IoT devices
• CCTV cameras, NVR/DVR and small security equipment
• POS terminals, barcode scanners and mini printers
• Small consumer electronics and handheld devices within 7.2W power

Detailed Specifications – MC5C-050100C

The following table lists the main electrical and mechanical parameters of the MC5C-050100C adapter platform. Output voltage and connectors can be adjusted for your specific project.

Detailed Specifications
